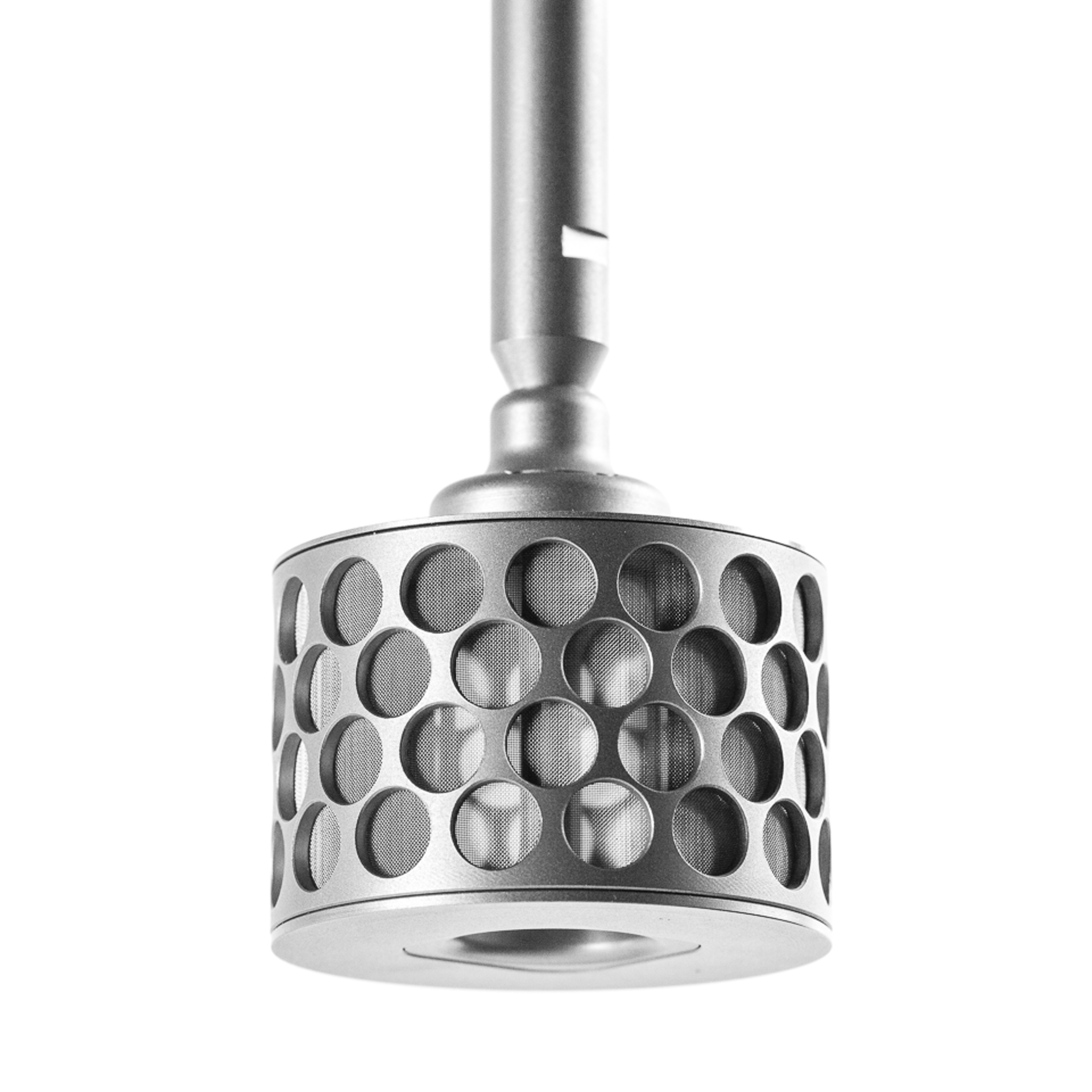

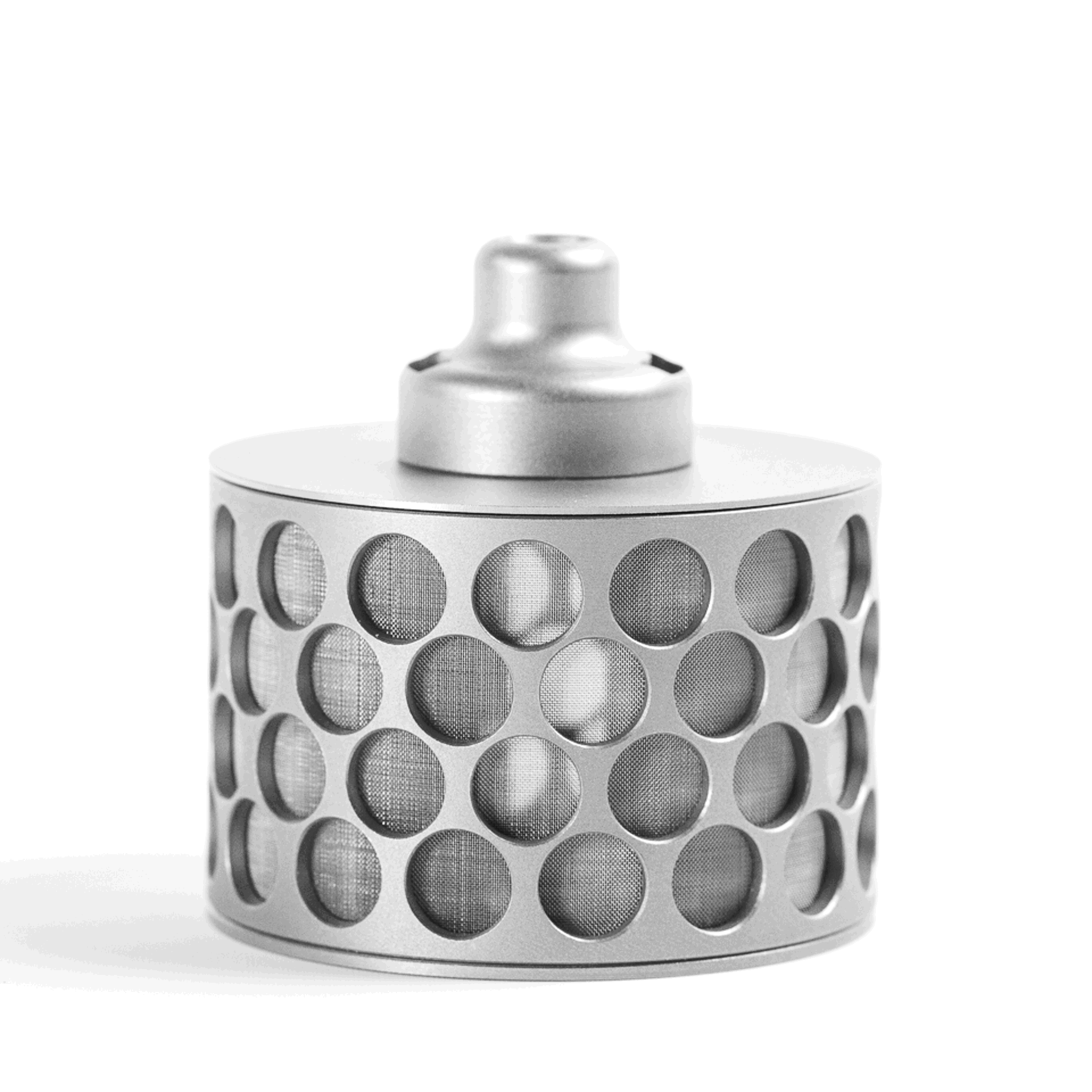

SpinChem® RBR S2

SpinChem® rotating bed reactor for 100-500 mL vessel

€3,540 (excluding accessories as shaft, filters and assembly tools)


  1. Material
  2. Stainless Steel (SS316L, EN2348)
  3. Height
  4. 30 mm
  5. Diameter
  6. 45 mm
  7. Porosity
  8. 104 µm
  9. Volume
  10. 28 mL
  11. Shaft Length
  12. 38 cm
  13. Shaft Diameter
  14. 10 mm
  15. Vessel Volume Range
  16. 100-500 mL
  17. Weight
  18. 85 g (317 g including shaft)
  19. Rotational Direction
  20. Counterclockwise
  21. Rotational Speed
  22. 300-1000 rpm (maximum 500 rpm continuously when shaft guide is used!)


A novel hierarchically structured siliceous packing to boost the performance of rotating bed enzymatic reactors, Flexible deployment with the Plug-in rotating bed reactor, Biocatalysis by immobilized enzymes in a rotating bed reactor, Biocatalysis engineering: the big picture, Biocatalysis in rotating bed reactors - from screening to production, CFD modeling of flow and ion exchange kinetics in a rotating bed reactor system, Design of a green chemoenzymatic cascade for scalable synthesis of bio-based styrene alternatives, Improving reactions in emulsions using a rotating bed reactor, Channelling effects common in columns removed with rotating bed reactors, High-throughput systems for processing liquid products, How large liquid volumes can a rotating bed reactor process?, Impact of critical parameters influencing enzymatic production of structured lipids using response surface methodology with water activity control, In situ filling and emptying of rotating bed reactors, L-Asparaginase production in rotating bed reactor from Rhizopus microsporus IBBL-2 using immobilized Ca-alginate beads, Mass transfer revolutionized, Modularized biocatalysis: Immobilization of whole cells for preparative applications in microaqueous organic solvents, How to find the optimal rotational speed when using a rotating bed reactor, Process design of a continuous biotransformation with in situ product removal by cloud point extraction, Production of hydroxytyrosol rich extract from Olea europaea leaf with enhanced biological activity using immobilized enzyme reactors, Reaction engineering of biocatalytic (S)-naproxen synthesis integrating in-line process monitoring by Raman spectroscopy, Recent advances in whole cell biocatalysis techniques bridging from investigative to industrial scale, Recycling of immobilized enzymes using rotating bed reactor technology, Recycling of Immobilized Enzymes – Simple and Streamlined Biocatalysis, Role of biocatalysis in sustainable chemistry, Rotating bed reactor for immobilized enzymatic reactions, Soft alginate beads used in a rotating bed reactor, Rotating bed reactors completely avoid grinding of molecular sieves, Screening of activated carbon using the SpinChem® RBR S2, Screening of Immobilized Enzymes – Fast and Convenient Reaction Optimization, Reactor design supported by computational fluid dynamics (CFD), Multistep synthesis or simultaneous extraction simplified in a rotating bed reactor, Simultaneous Selective Decolouration – Illustrating a Concept for Cascade Reactions, Assembly guide for Rotating Bed Reactor S2, Transfer hydrogenation with catalyst recycling in a rotating bed reactor, Using a rotating bed reactor in different liquid volumes, Lipase-catalyzed hydrolysis in 750 L using a rotating bed reactor, How the loading of solids influences reaction speed, Phenol scavenging using ion-exchange resin, Peroxygenase-Driven Ethylbenzene Hydroxylation in a Rotating Bed Reactor, Determination of kinetics and equilibria of heterogeneously catalyzed gas-phase reactions in gradientless autoclave reactors by using the total pressure method: Methanol synthesis
