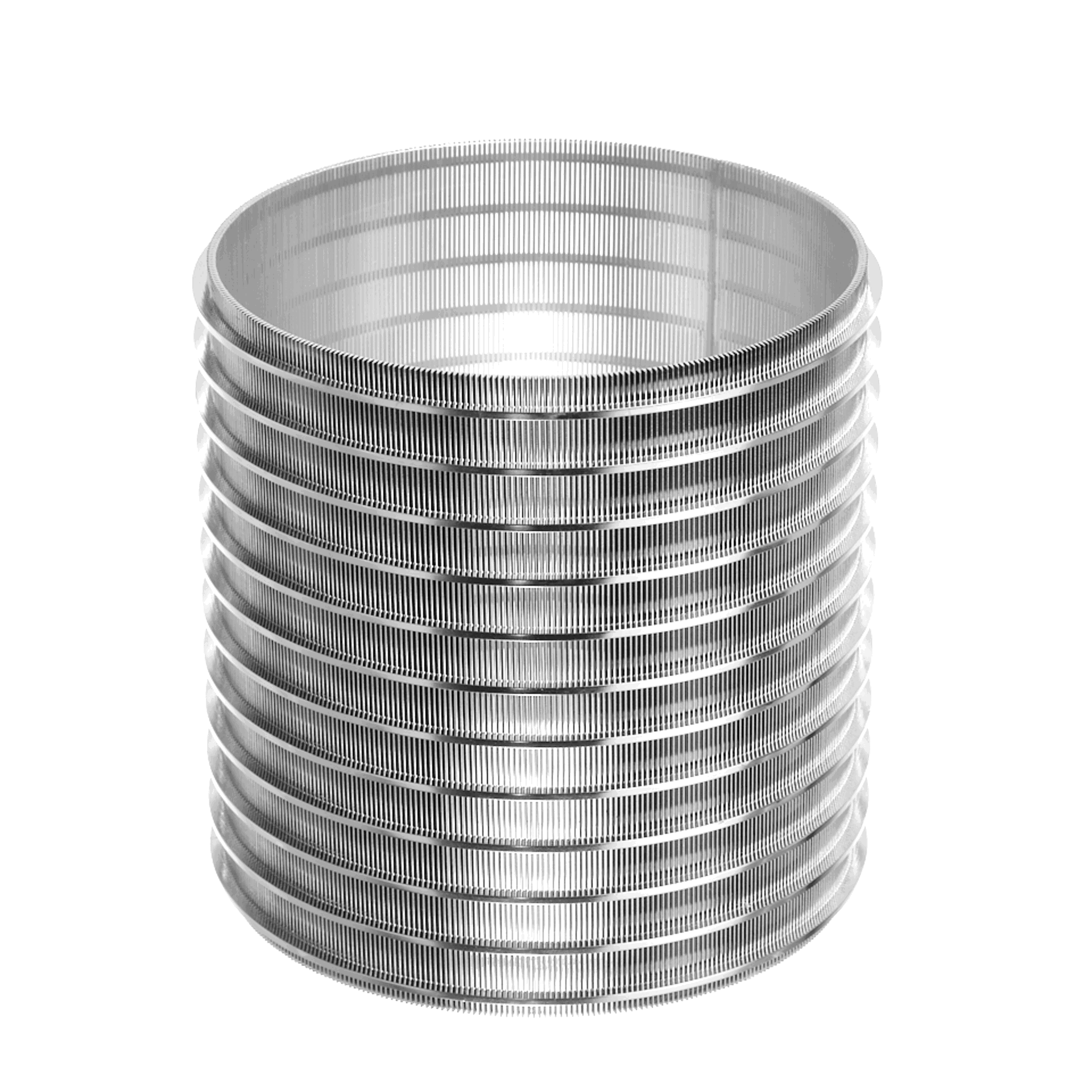

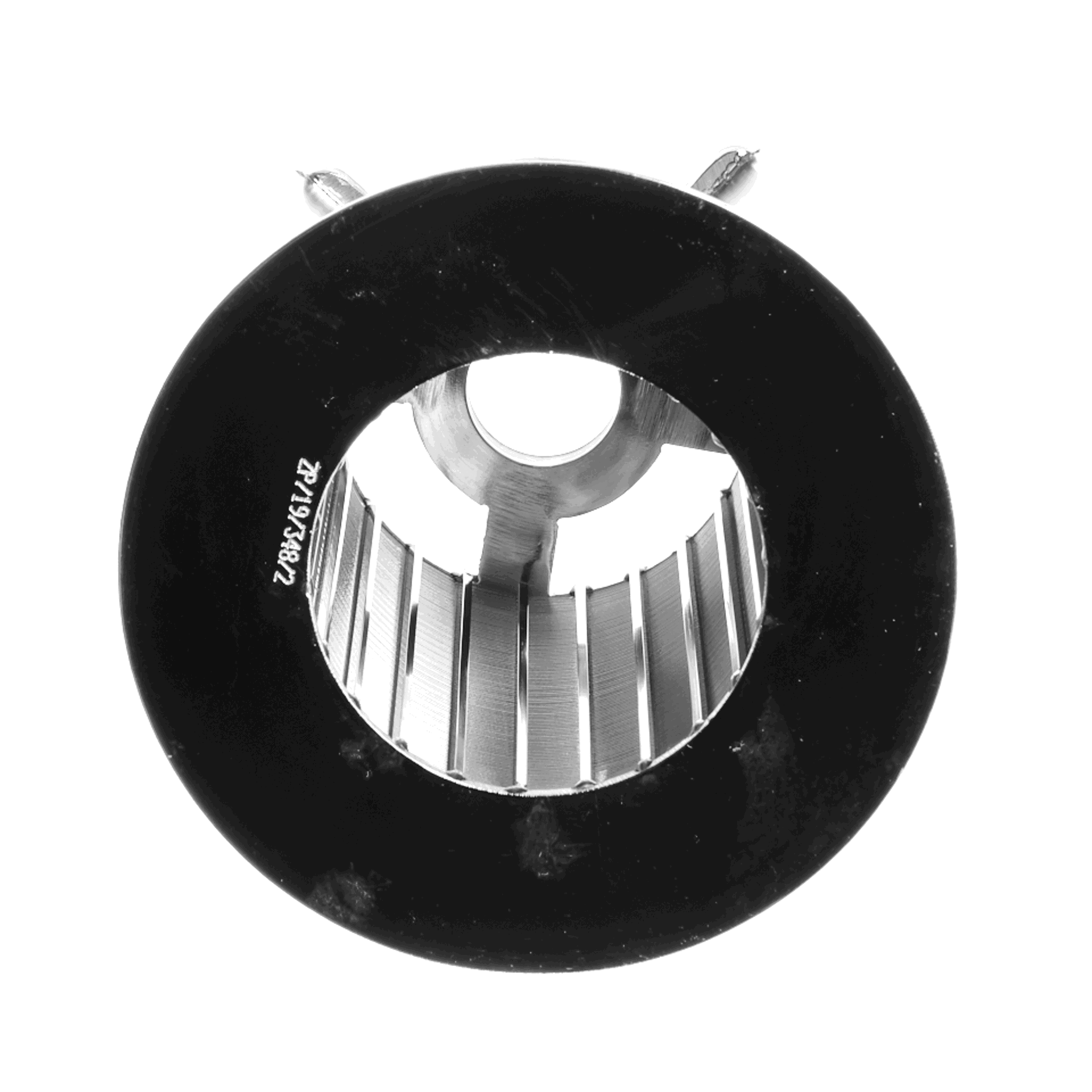

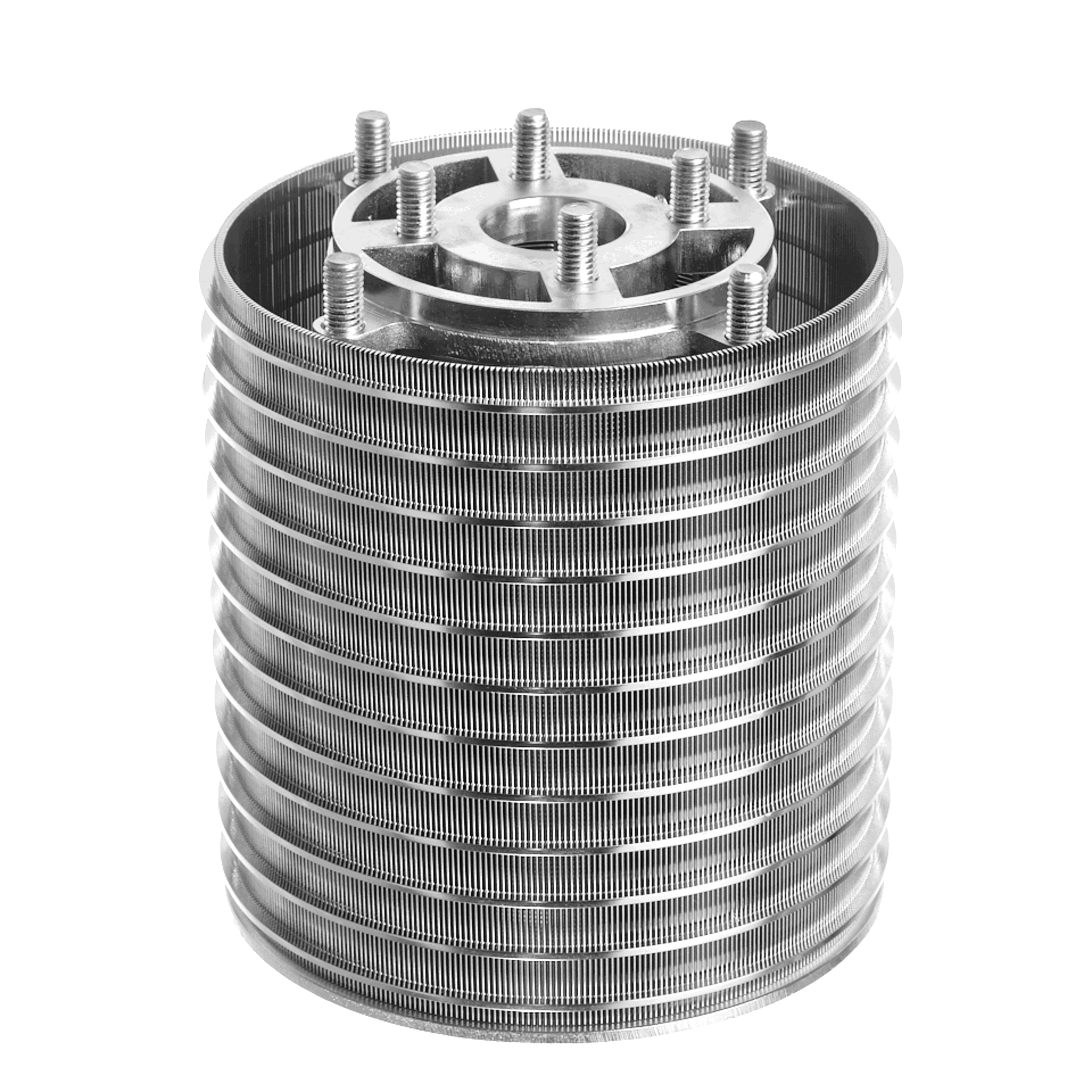

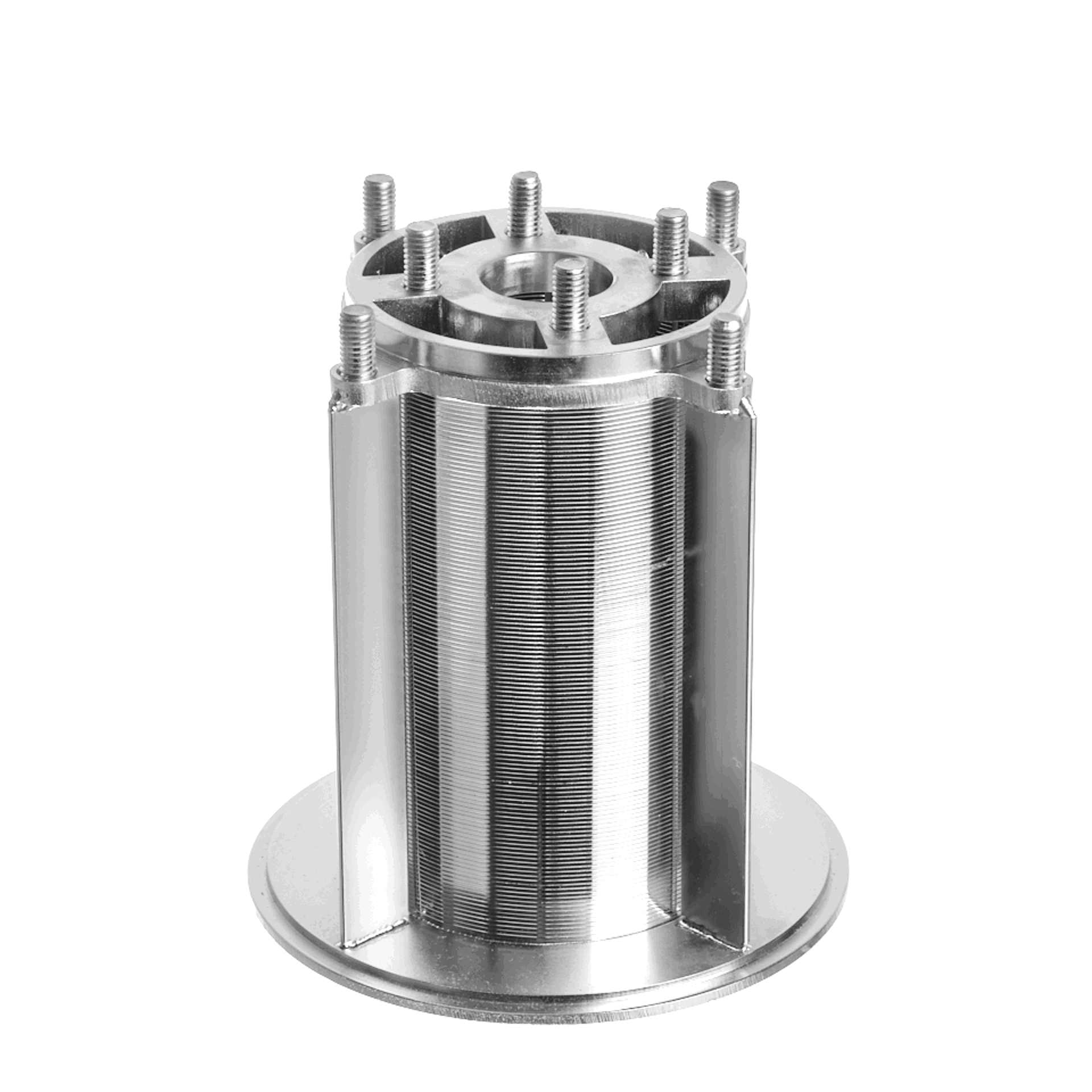

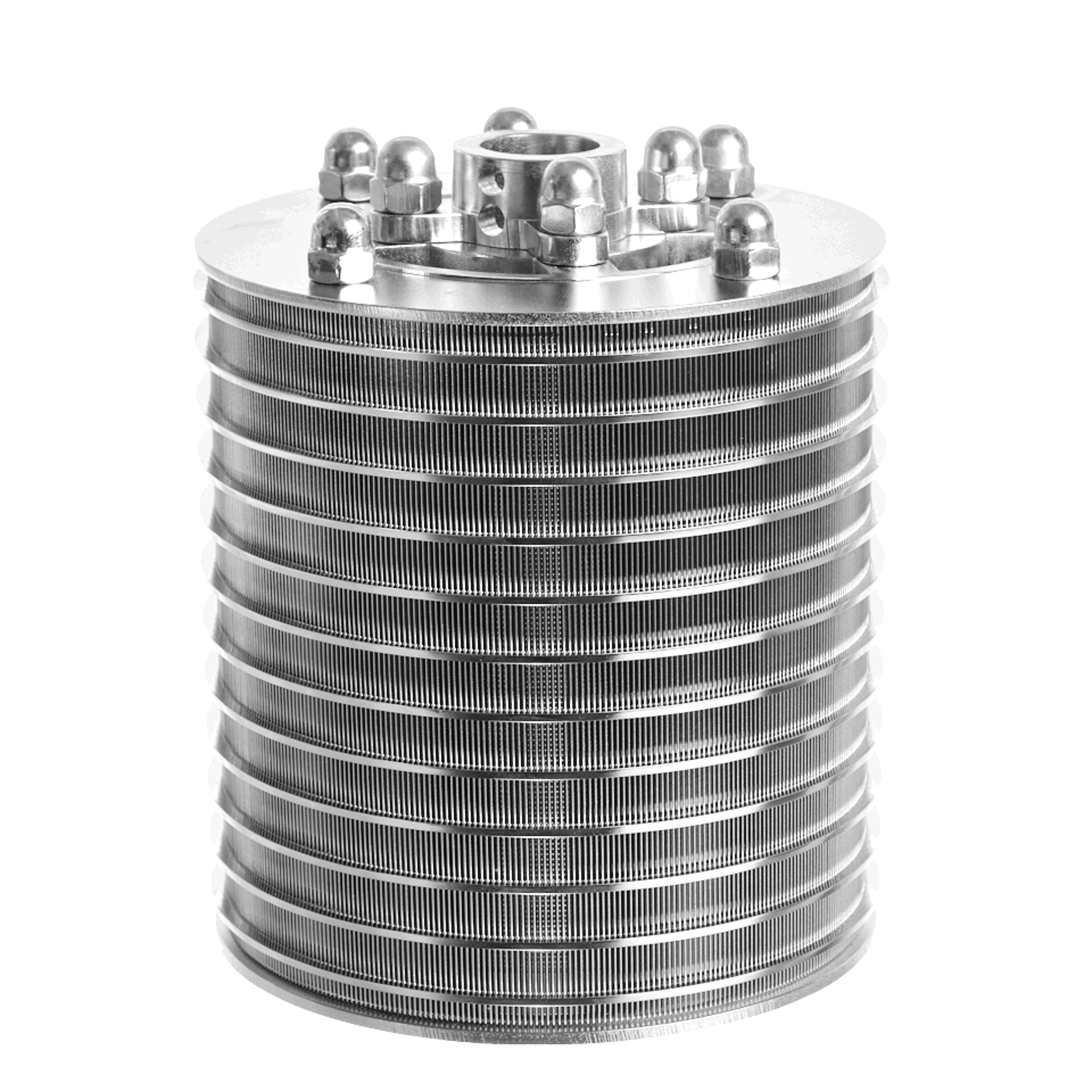

SpinChem® RBR S4

SpinChem® rotating bed reactor for 2-30 L vessels.

Price on request.

Specifications

  1. Material
  2. Stainless Steel (SS316L, EN2348)
  3. Height
  4. 140 mm
  5. Diameter
  6. 140 mm
  7. Porosity
  8. 100 µm
  9. Volume
  10. 1.1 L
  11. Shaft Diameter
  12. 30 mm
  13. Vessel Volume Range
  14. 2-30 L
  15. Rotational Direction
  16. Clockwise / Counterclockwise
  17. Rotational Speed
  18. 150-400 rpm

Accessories

ProRBR Complete kit

ProRBR IBC add-on

Applications

A remote controlled raft for treatment of surface water using rotating bed reactor technology, SpinChem RBR S4, S5 and S14 Assembly Guide, Lipase-catalyzed hydrolysis in 750 L using a rotating bed reactor

Instruction Video
Specification sheet
