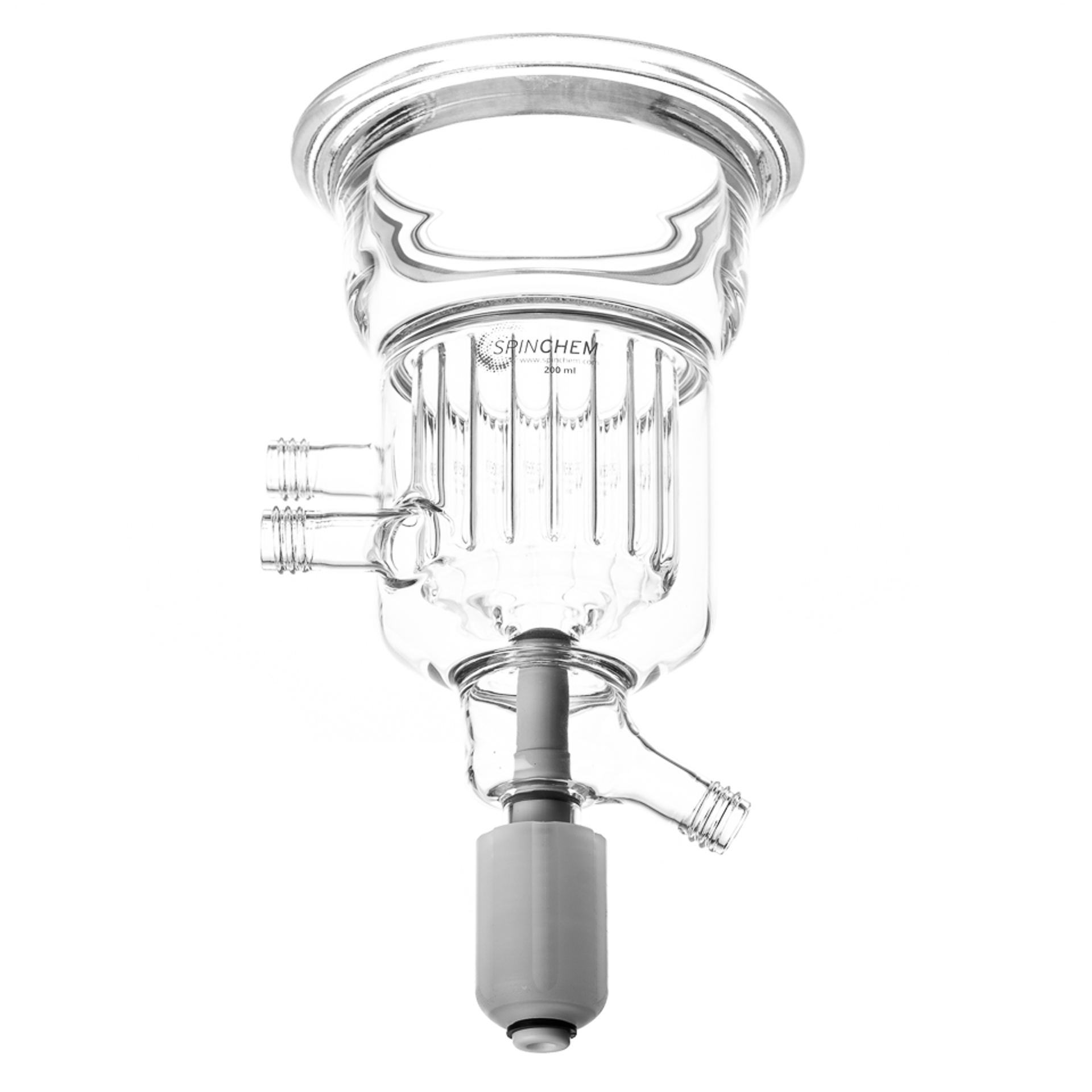

SpinChem® Vessel V2

SpinChem® flower-baffled jacketed reaction vessel DN100 with bottom drain, 200 mL.



  1. Material
  2. Borosilicate Glass
  3. Height
  4. 250 mm
  5. Width
  6. 140 mm
  7. Diameter
  8. DN100
  9. Volume
  10. 200 mL
  11. Connection
  12. Hose GL18
  13. Vessel Volume Range
  14. 120-300 mL
  15. Weight
  16. 763 g
  17. Pressure
  18. 0-0.5 bar above atmospheric
  19. Temperature
  20. -70 to +230 °C
  21. Vacuum
  22. 10 mbar with SpinChem® shaft guide. Vacuum operation requires glass stoppers. Let us know if you want to use vacuum, and we can provide the system ready with glass stoppers.
