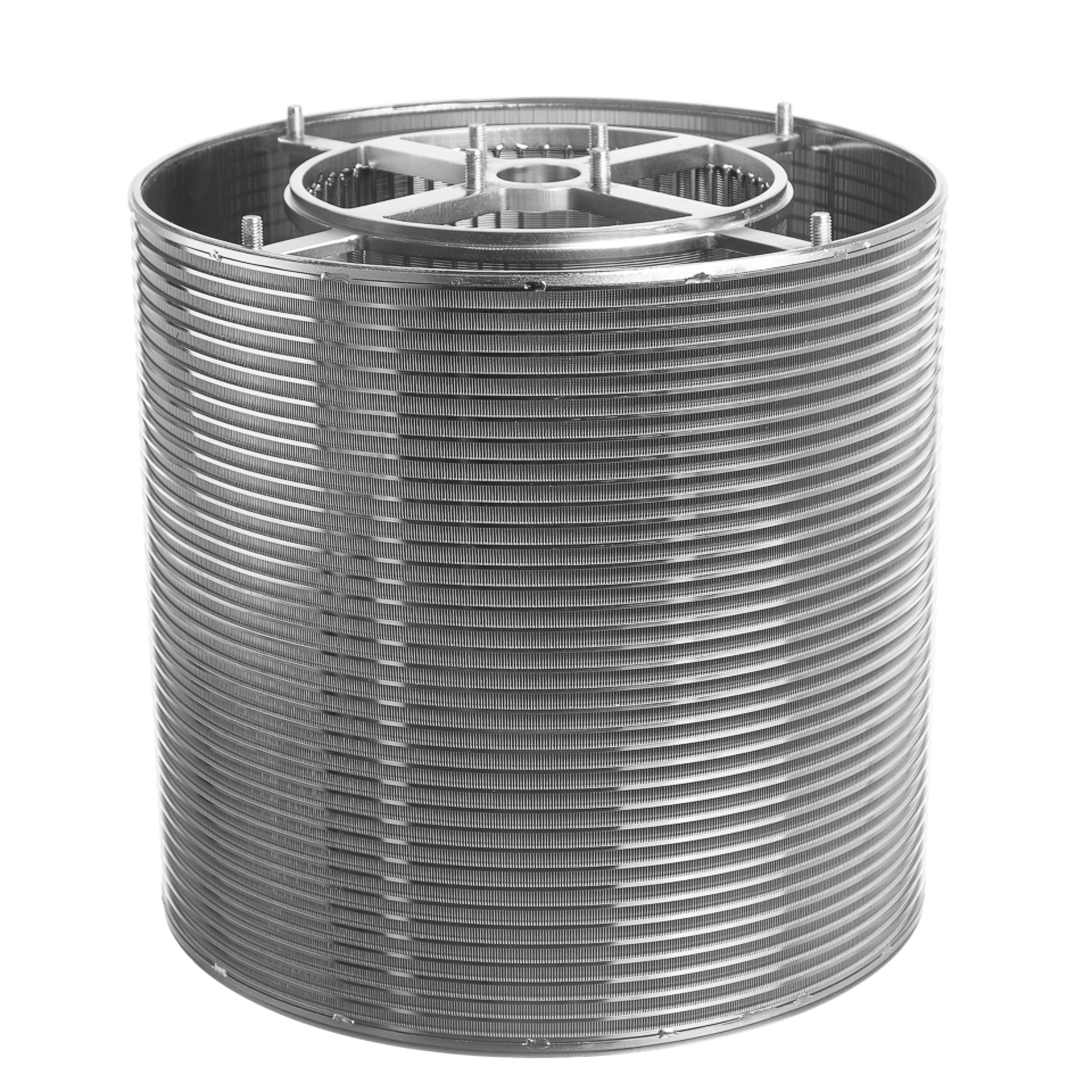

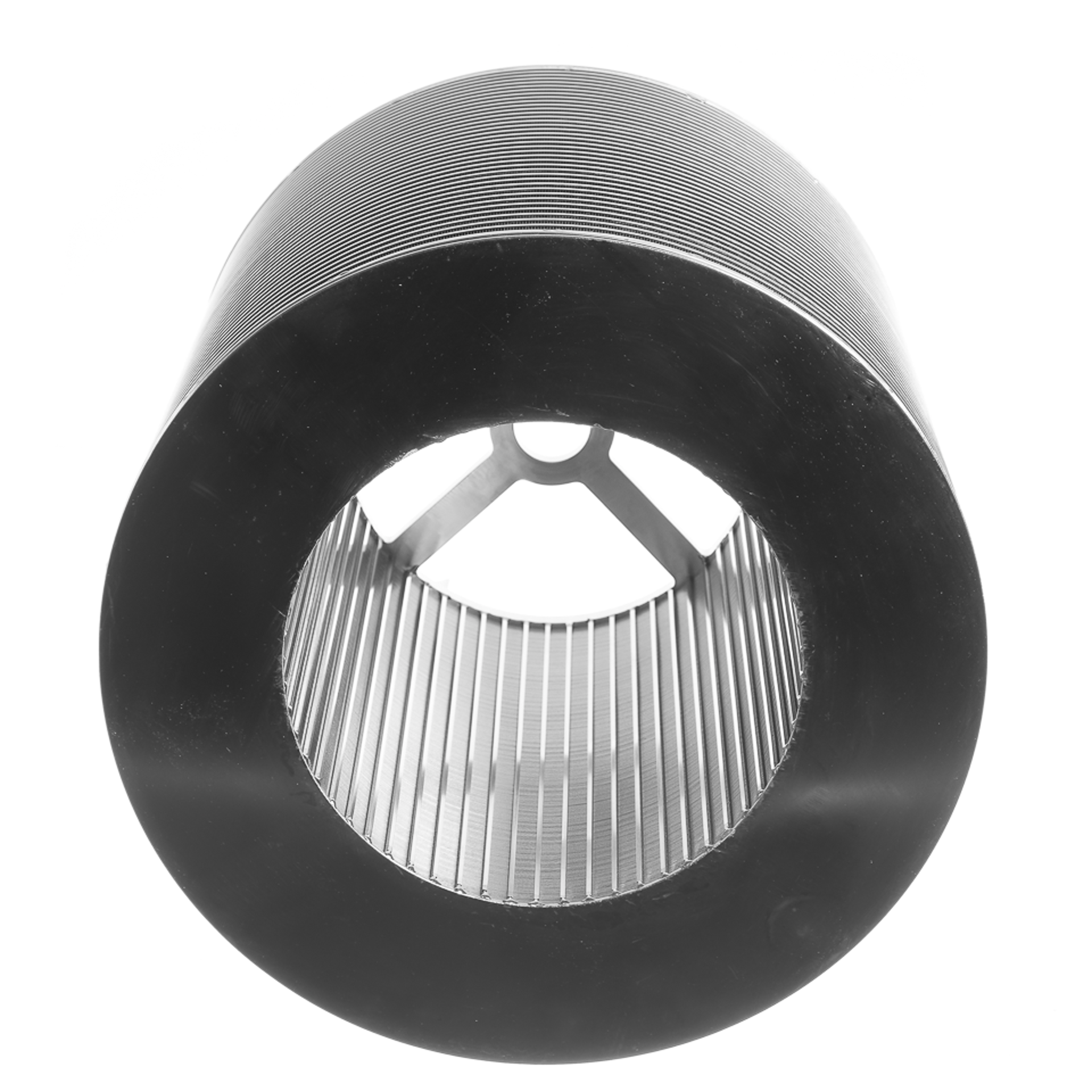

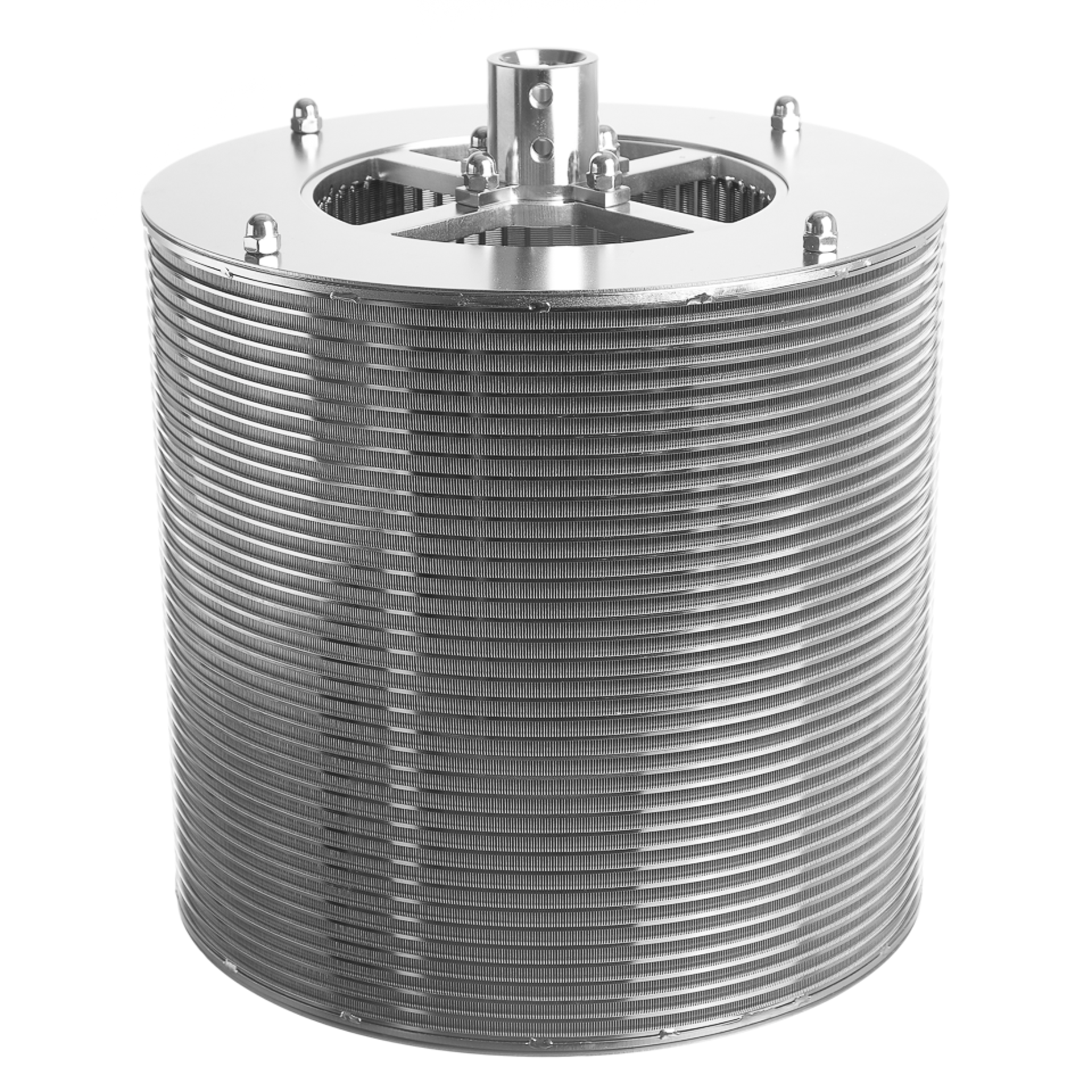

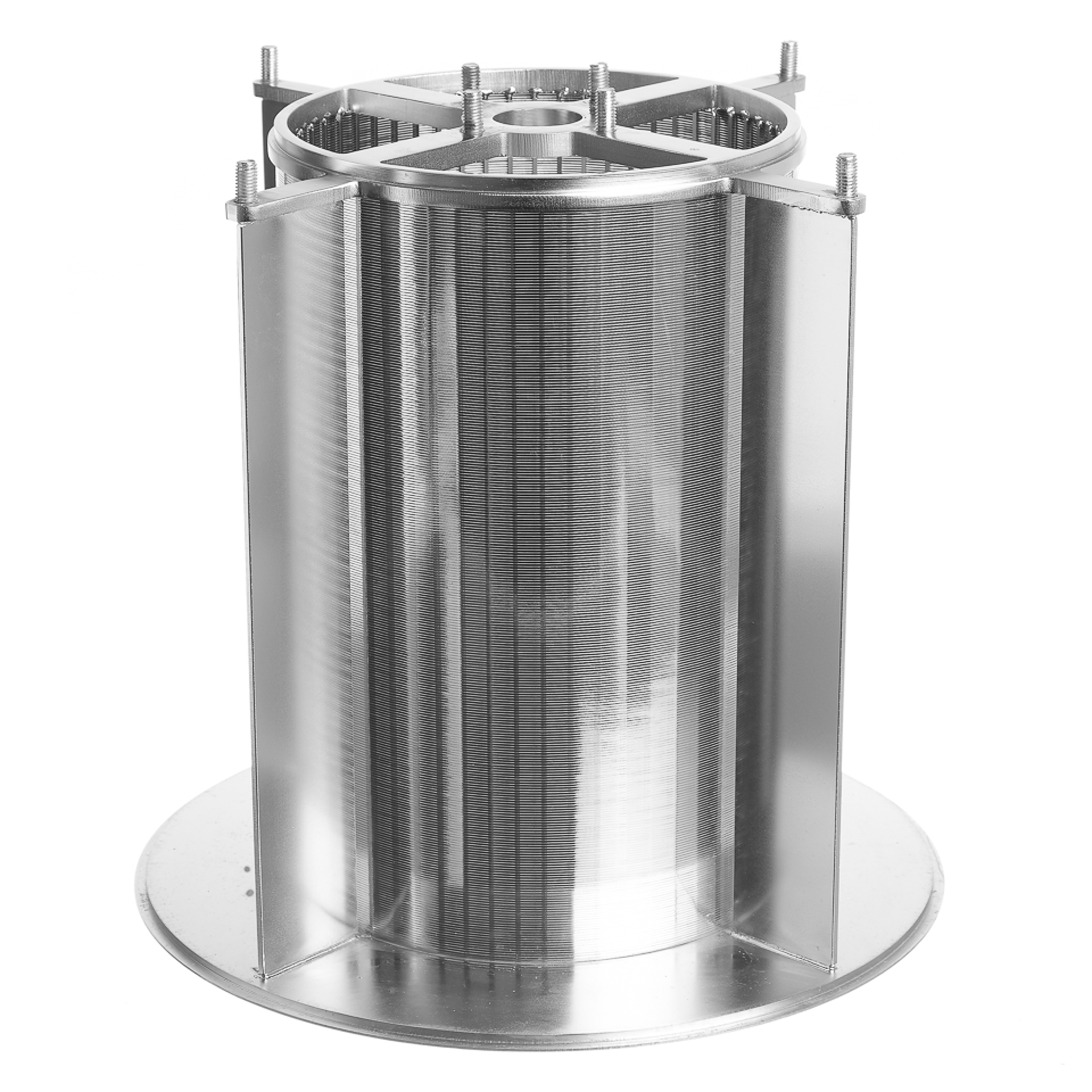

SpinChem® RBR S14

SpinChem® rotating bed reactor for 60-1500 L vessels. Can be custom made to match the user's reaction vessel.

Specifications

  1. Material
  2. Stainless Steel (SS316L, EN2348)
  3. Height
  4. 310 mm
  5. Diameter
  6. 330 mm
  7. Porosity
  8. 100 µm
  9. Volume
  10. 14 L
  11. Shaft Diameter
  12. 30 mm (custom attachments are possible)
  13. Vessel Volume Range
  14. 60-1500 L
  15. Rotational Direction
  16. Clockwise / Counterclockwise
  17. Rotational Speed
  18. 50-400 rpm

Accessories

ProRBR Complete kit

ProRBR IBC add-on

Applications

SpinChem RBR S4, S5 and S14 Assembly Guide, In tank deployment of large scale rotating bed reactor

Specification sheet
