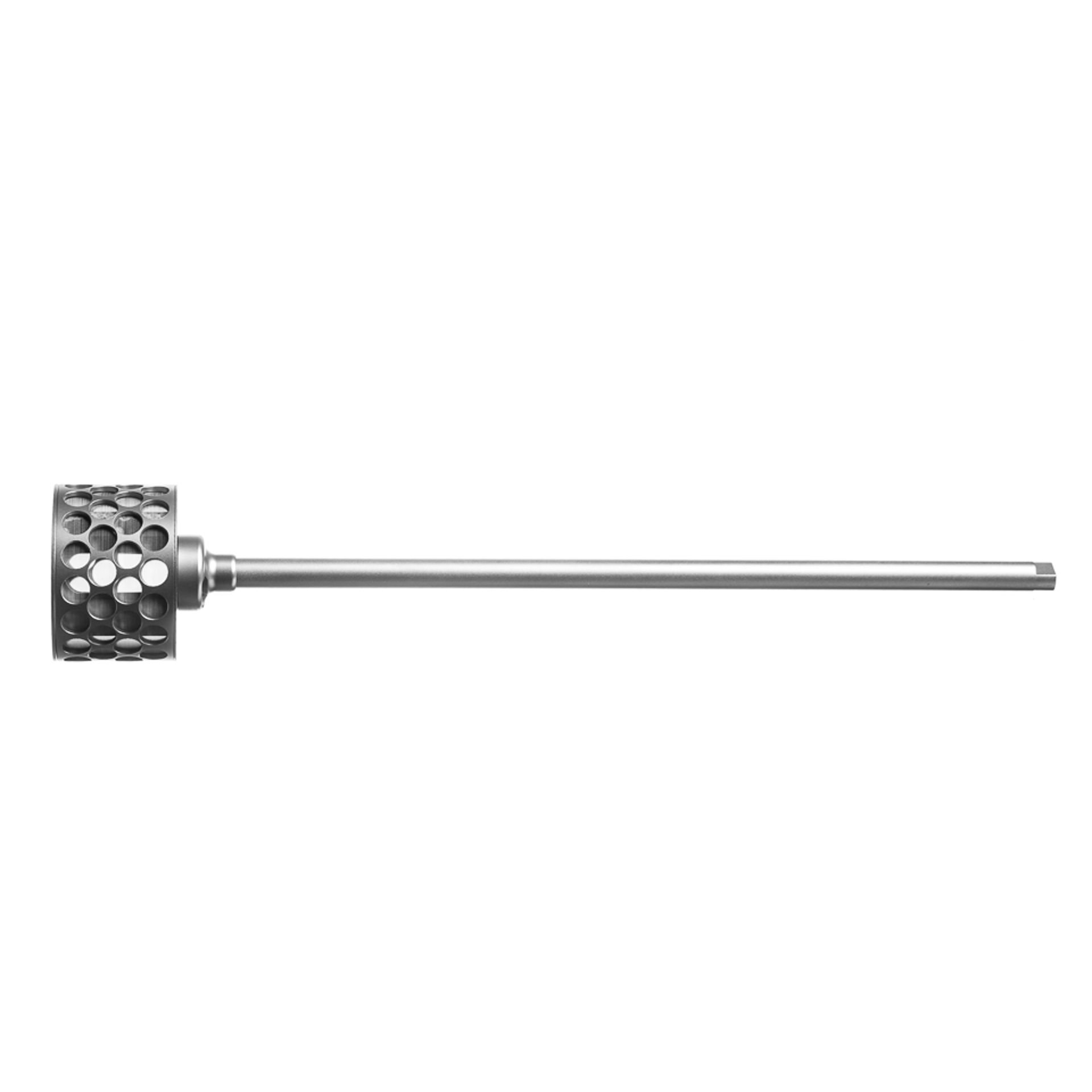

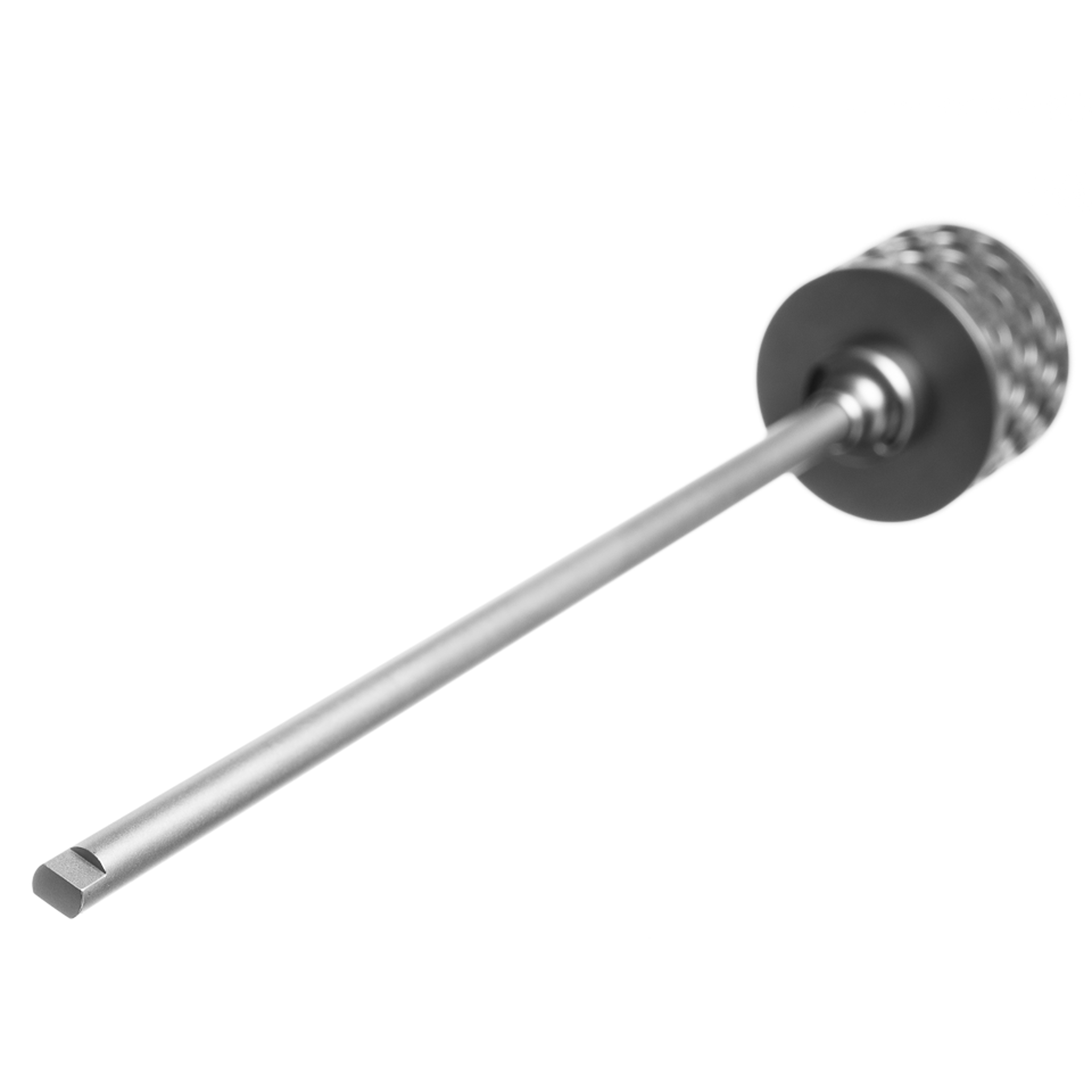

SpinChem® RBR S2 for EasyMax 102

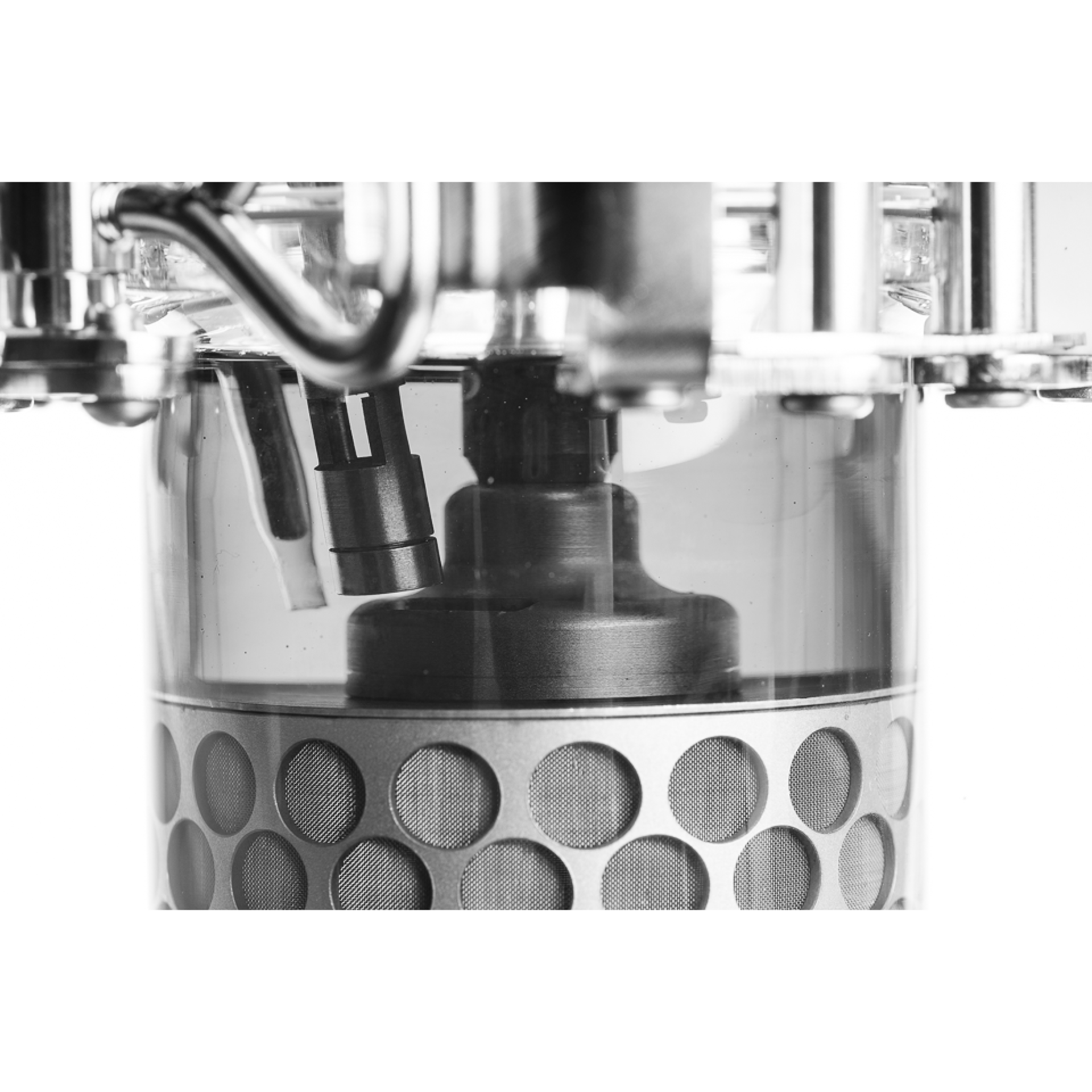

SpinChem® rotating bed reactor for use in EasyMax 102 Advanced Synthesis Workstation.

€3,540 (excluding accessories as shaft, filters and assembly tools)

Specifications

  1. Material
  2. Stainless Steel (SS316L, EN2348)
  3. Height
  4. 30 mm
  5. Diameter
  6. 45 mm
  7. Porosity
  8. 104 µm
  9. Volume
  10. 28 mL

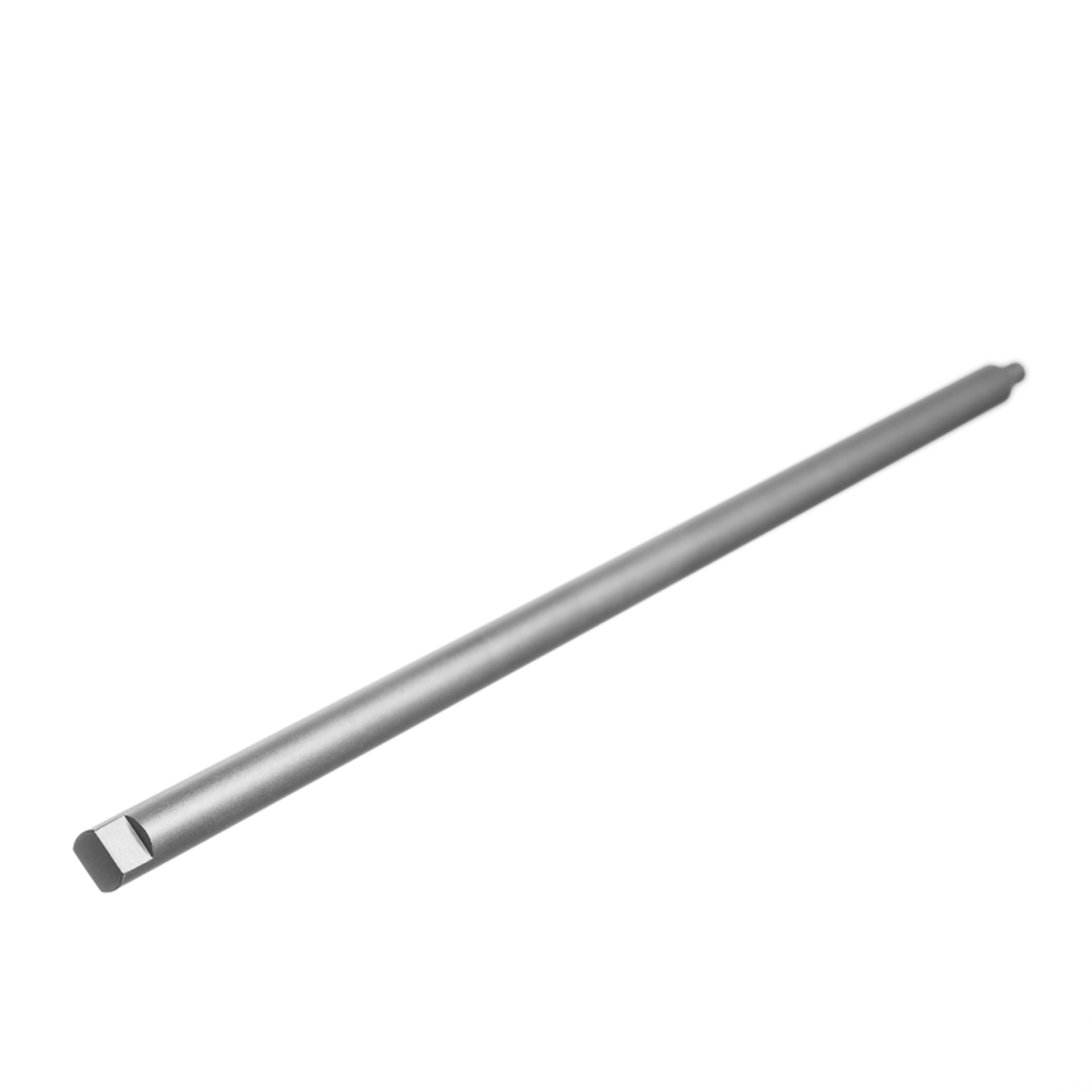

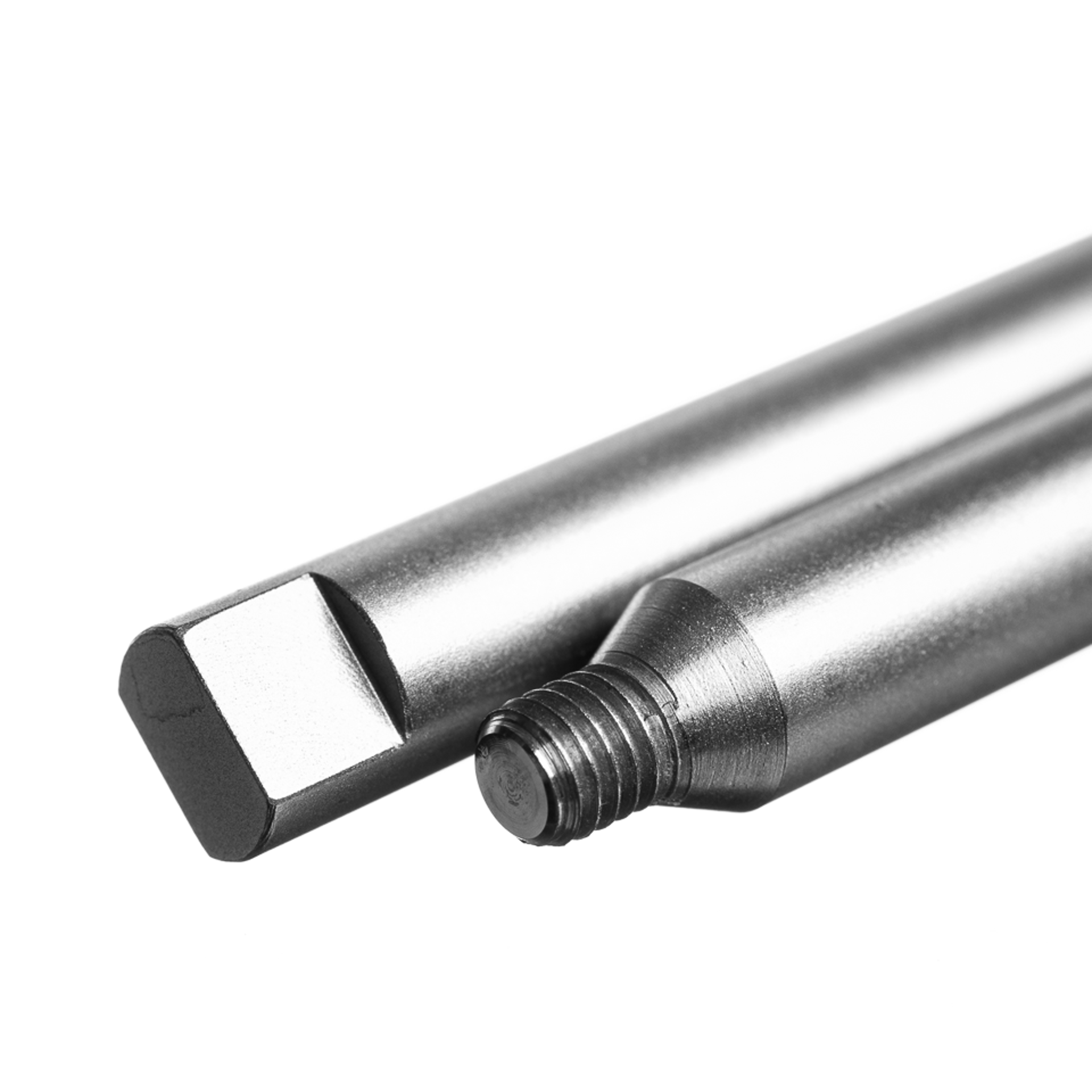

  11. Shaft Length
  12. 223 mm
  13. Shaft Diameter
  14. 8 mm
  15. Weight
  16. 85 g (172 g including shaft)
  17. Rotational Direction
  18. Counterclockwise
  19. Rotational Speed
  20. 300-1000 rpm

Applications

SpinChem RBR Tips ‘n’ Tricks, Treatment of Viscous Solutions – Simple Extraction and In-line Monitoring
