The SpinChem® process rotating bed reactor (ProRBR) is a flexible, simple and versatile solution for batch and flow processing of liquid volumes of 100 L to thousands of cubic metres. The design and size of the ProRBR is customized and optimized for the process in question.

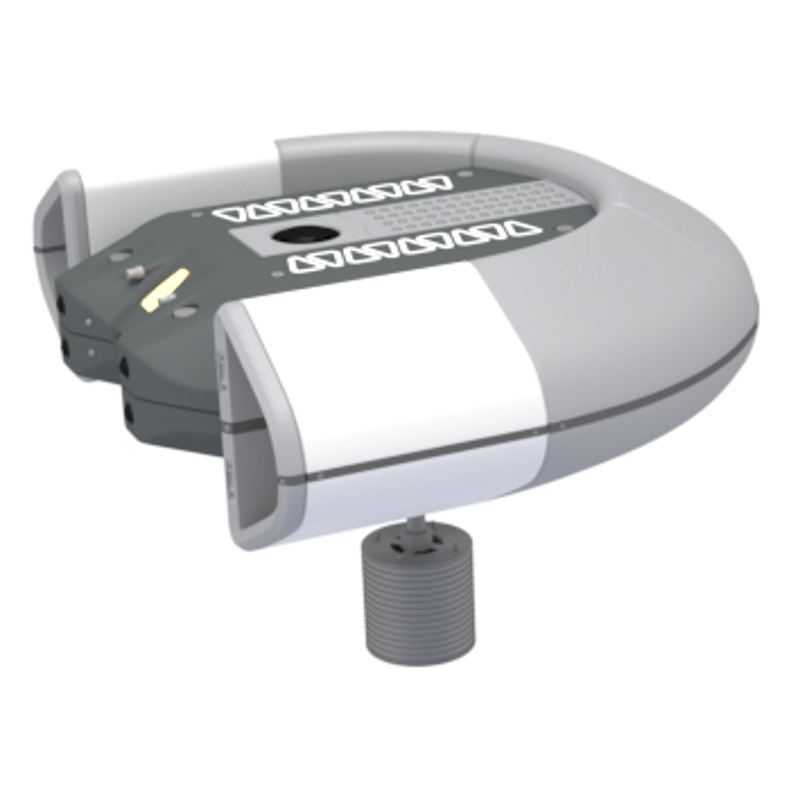

For liquid volumes spread over large areas, like pit lakes or spent fuel pools, the ProRBR is mounted beneath an autonomous craft that moves across the surface of the reservoir while processing the liquid. The design and size of the ProRBR is customized and optimized for the process in question. Price on request.

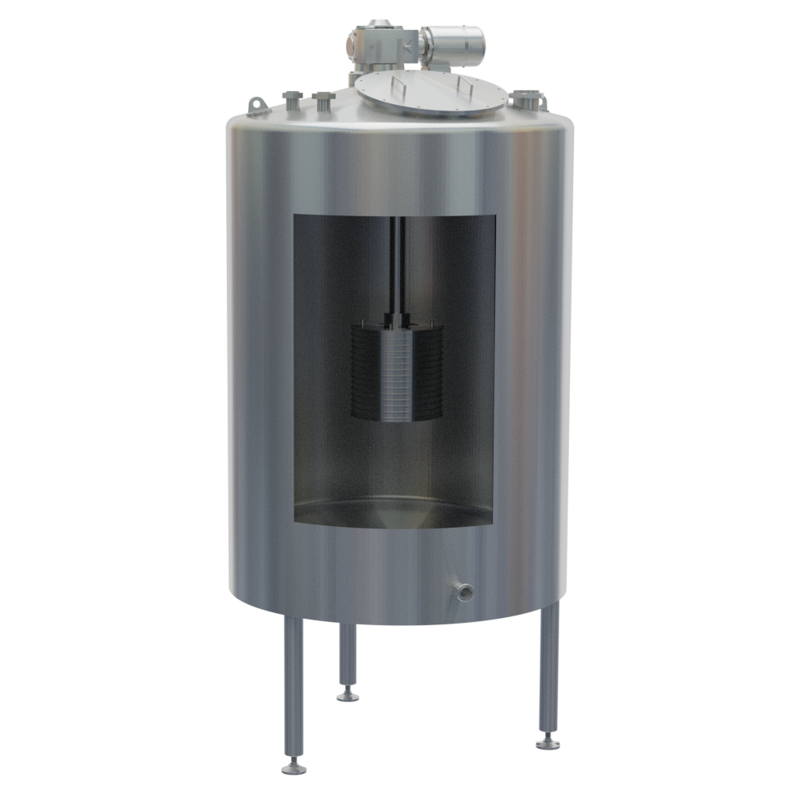

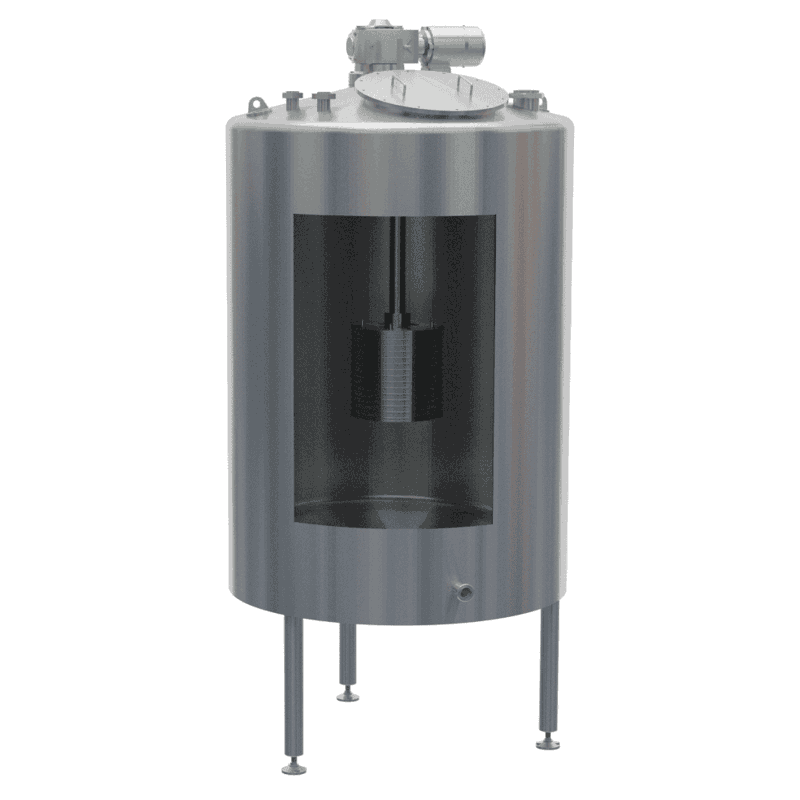

By replacing a pre-existing stirrer with a ProRBR, or installing it through a manway, the ProRBR is used in-tank for batch mode processing. The design and size of the ProRBR is customized and optimized for the process in question. Price on request.

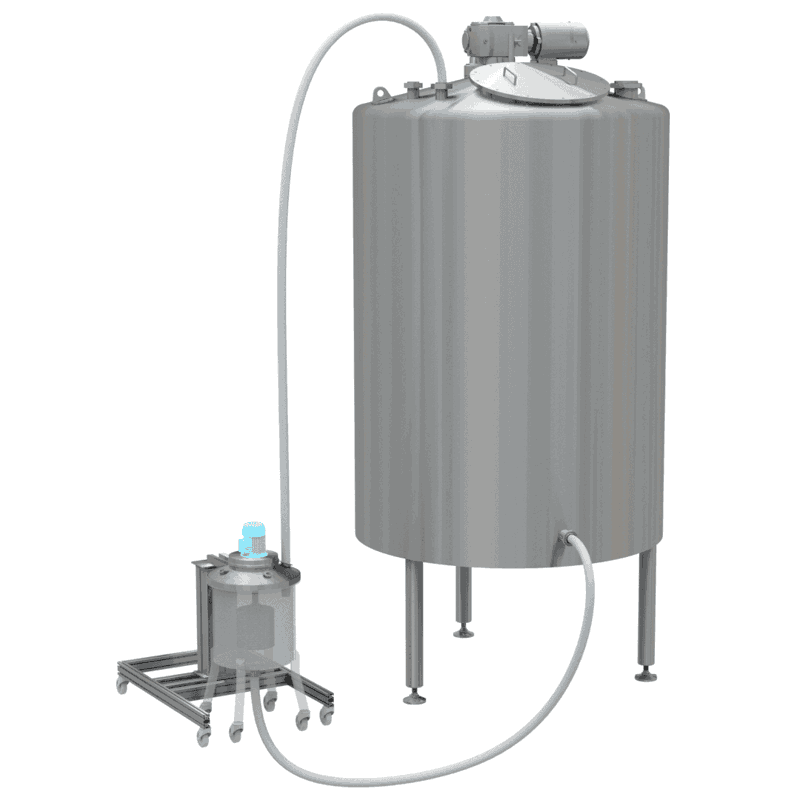

ProRBR mounted in a separate vessel connected to the main tank, both processing the liquid and pumping it between reservoirs. This configuration can be used in both batch and flow modes, as the liquid can be redirected into the main tank, or passed on to an additional reservoir after being processed. The design and size of the ProRBR is customized and optimized for the process in question. Price on request.

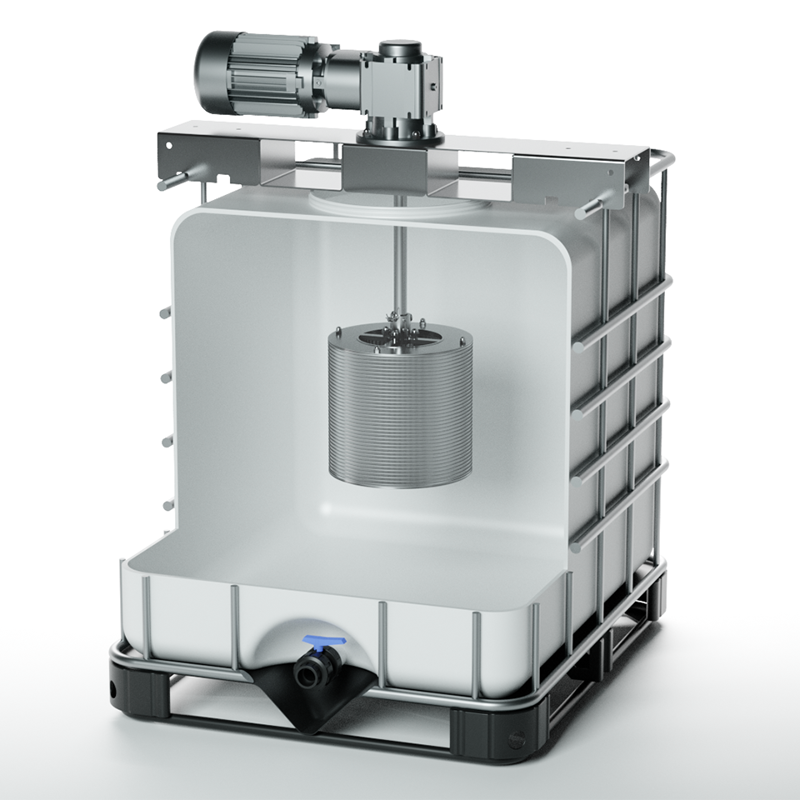

A ProRBR system designed for 600, 800 or 1000 L standard IBC tanks. It is equipped with a traverse and motor to serve as a plug-and-play solution for the processing of liquids in IBC tanks. The ProRBR IBC add-on is available with the RBR S4, RBR S5 and RBR S14 models and can also be customized for your unique process. Price on request.

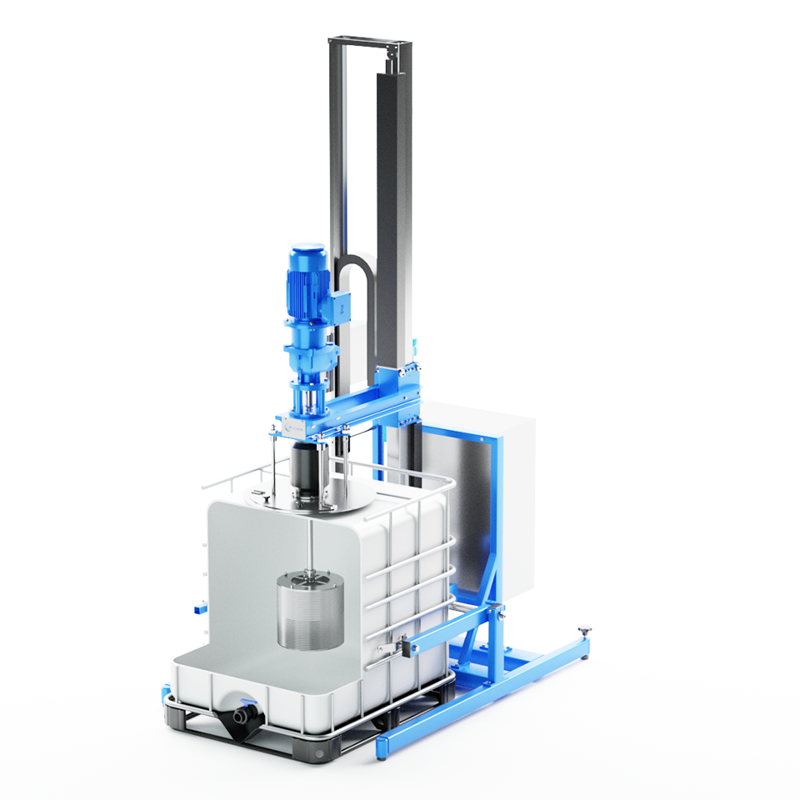

The ProRBR Complete kit is a plug and play system used for pilot and industrial scale. The system can be used with a variety of vessels thanks to its modular design, with typical liquid volumes ranging between 50-1000 L (larger volumes possible). In addition to normal working environments, it can also be used in explosive hazardous environments since we offer an ATEX-certified version of the system. The electrically controlled lift and motor make the system easy to use for a single operator. Check out the accessories below to see which RBR is suitable for your application. Price on request.

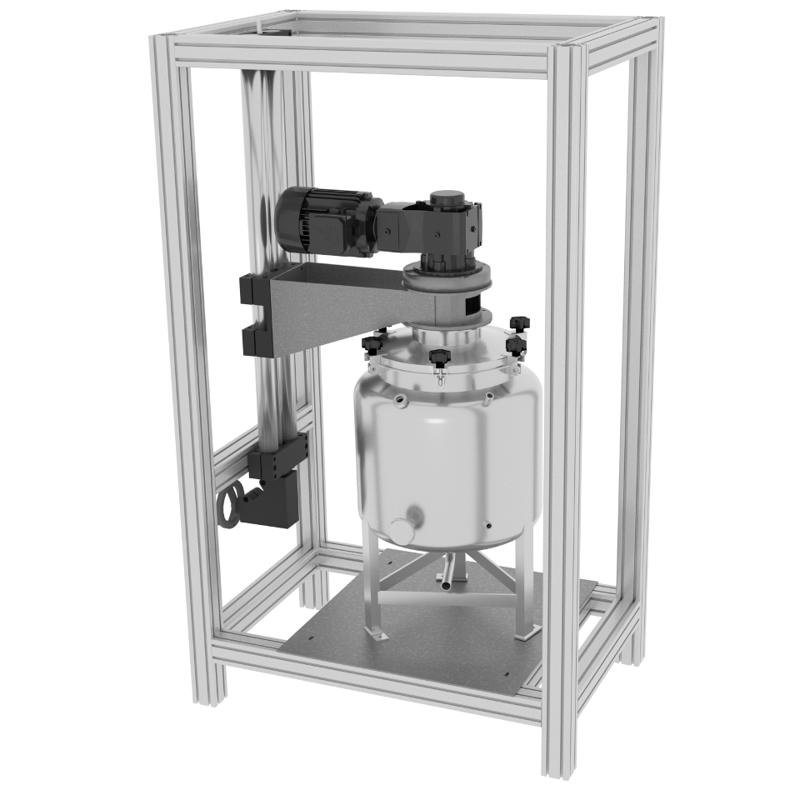

Get started with pilot testing or production in 120 L of liquid, with the RBR S5 installed in a jacketed stainless steel vessel. The lifting aid raises the rotating bed reactor for service operations, such as solid-phase replacement or cleaning. Price on request.
