Katarzyna Szymańska, Klaudia Odrozek, Aurelia Zniszczoł, Wojciech Pudło, and Andrzej B. Jarzębski Chem. Eng. J., 2017, 315, pp. 18-24.

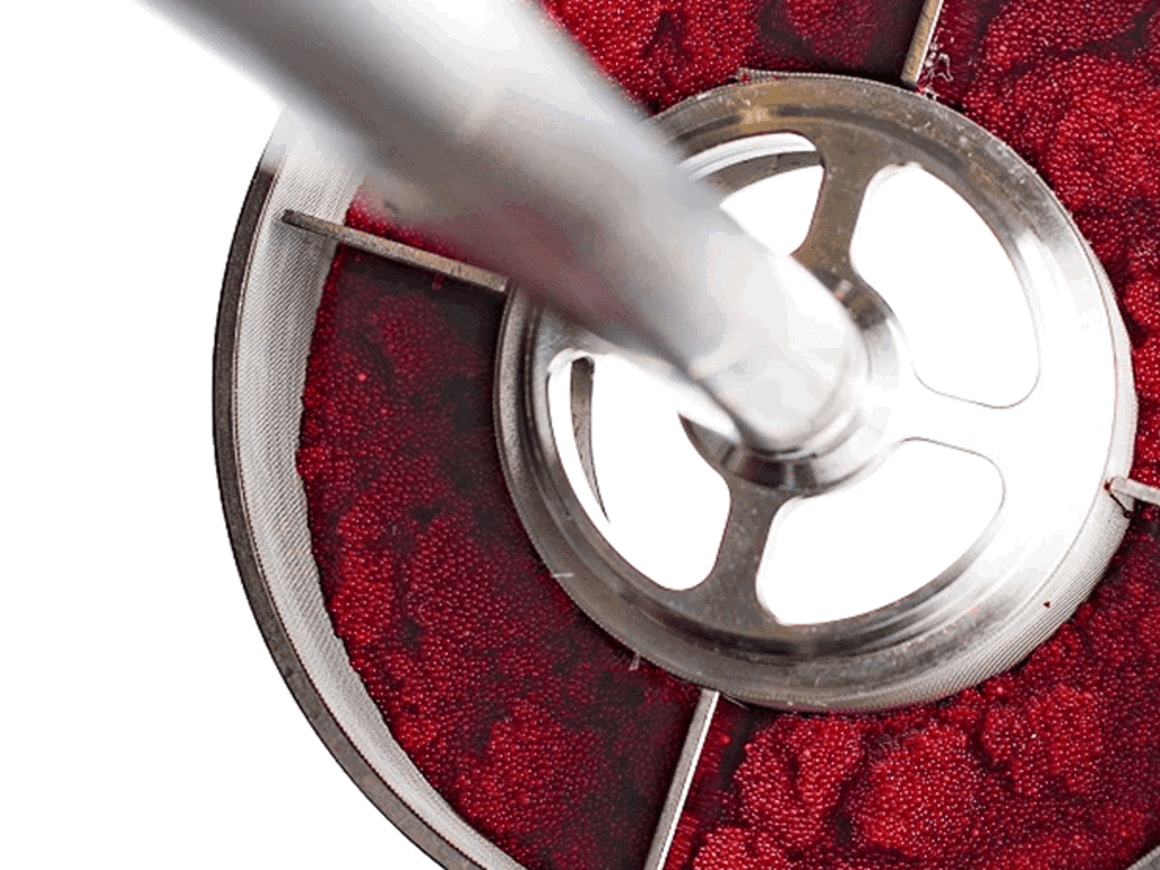

Activated carbon is a common choice for removing impurities or capturing compounds from a product batch. However, the carbon may itself foul the product and be difficult to separate. The rotating bed reactor offers a clean way to deploy activated carbon that removes the need for time-consuming filtration and extends the lifetime of the solid phase.

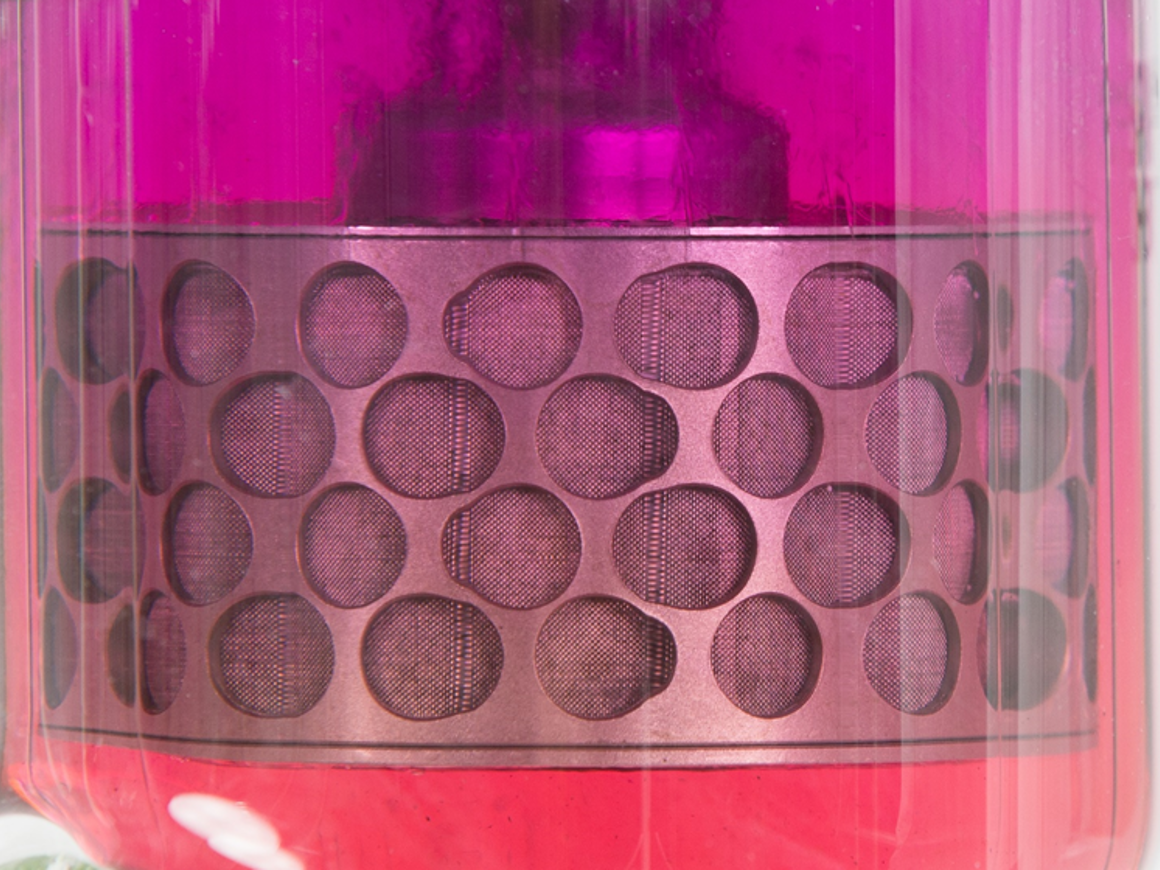

The rotating bed reactor (RBR) is a combined tool for chemical transformations and liquid transfer operations, reducing or eliminating the need for external pumps. Filled with a catalyst or adsorbent, and rotated by a motor, the RBR brings the liquid to be processed in contact with the solid-phase at high flow rates. Due to the high flow rate generated, the RBR can not only treat the liquid in the reaction vessel, but also transfer it into the vessel for processing.
Automation of large-scale processes is often a requirement for economically viable chemical processes. The benefits of scale are best harvested at high throughputs and 24/7 operation. This leads to the demand for process automation, and the elimination of hands-on work.
Hilde Larsson, Patrick Alexander Schjøtt Andersen, Emil Byström, Krist V. Gernaey, and Ulrich Krühne Ind. Eng. Chem. Res., 2017, 56, 14, pp. 3853-3865.
A performance comparison between a column (fixed bed reactor) and rotating bed reactor (RBR) for de-ionizing 1000 L of tap water. Using best-in-class standard protocols for both technologies, we tested which technology could de-ionize to a desired endpoint conductivity value the quickest. The result show that the RBR is significantly faster, reaching 3.7 times faster a conductivity level of 0.15 µS/cm compared to the column. Keywords: Cleantech, Deionization, Fast reaction, Technology
A fixed bed reactor (FBR), also known as a packed bed reactor or column, is a traditional technology for processes such as adsorption or heterogeneous catalysis. Achieving the required level of purification or conversion means running the liquid through the reactor at a sufficiently low flow rate, and the throughput of a fixed bed reactor is therefore often limited.
Mass transfer limited reactions can create problems for applications like the synthesis of chemical products or the manufacture of active pharmaceutical ingredients. Poor yields, high side-product formation or impractically long reactions are potential issues. Efficient reactor design can greatly improve the mass transfer and remove the limitation to a minimum.
Liquids with high viscosity create problems for heterogeneous applications in traditional reactors. Packed bed reactors (columns) suffer from huge back pressures, and stirred tank reactors (STR) exhibit reduced reaction rates due to poor mixing. Both issues lead to longer processing times and expensive operations.
Adsorption of methylene blue (3 g, 5 mg/L) onto Purolite® NRW1160 (4.2 L) placed in a SpinChem® S5 RBR operated at 147 rpm. The SpinChem® S5 RBR was placed within a 600 L IBC tank, using the ProRBR IBC add-on, where the tank was filled with water. The data was acquired using a UV-VIS spectrophotometer.
Decolorization, pesticide remediation, catalysis, and many other applications involve dealing with viscous liquid that needs to be modified in some way. The rotating bed reactor presents an efficient way to treat viscous liquids, without the challenges of conventional reactors.
A large scale decolourization experiment using the SpinChem® rotating bed reactor (RBR) S100, packed with 79 L of activated carbon. The vessel contained 7000 L of water with added methylene blue dye. In under 40 minutes, 95% of the initial concentration of methylene blue was removed from the water, which shows that the RBR S100 can achieve fast reaction times in large scale processes. Keywords: Activated carbon, Cleantech, Decolouration, Fast reaction
Video showing how to promote holiday spirit by seasoning mulled wine using a rotating bed reactor. Assorted spices and sugar were used to transform white wine mixed with a clear liquor into a festive and flavourful Christmas drink. The temperature of the mixture was kept at 70°C and the outside temperature at -6°C, using a heating jacket and a northern latitude, respectively. Keywords: Behind the scenes
When working with an emulsion (and particularly with a heterogeneous catalyst) the mass transfer between the phases is critical. Insufficient mixing leads to lower interfacial area per volume, and in turn to poor mass transfer across the phases.
To further demonstrate the use of RBR:s at process scale, a decolorization using ion exchange resin was performed at 7500 L scale. An RBR S14 was filled with strongly acidic cationic resin NRW1160 from Purolite and used to remove blue dye from an aqueous solution in a stainless steel tank of 7500 L volume. The solid-to-liquid ratio is a fraction of percent, showing the efficiency of the RBR technique for convectional mass-transfer and global mixing. The RBR was spun at 340 rpm while the transmittance at 663 nm was monitored for ca 4 h at which point the transmittance had recovered the baseline value for colorless de-ionized water. Keywords: Ion exchange, Cleantech, Nuclear, Scale-up
Learn how SpinChem rotating bed reactors (RBR) can eliminate poor mass transfer in heterogeneous reactions during chemical synthesis and biotransformations. Preserve activity and facilitate recycling of solid phases with the RBR. This brochure shows technology and applications. Keywords: Biotransformation, Brochure, Fast reaction, Immobilized enzymes, Molecular sieve, Preserved activity, Simple cleanup, Synthesis, Technology
Pesticide residue can ruin a batch of a botanical extract, creating large problems for producers. Curated adsorbents, specifically chosen for your situation, can be used to remediate the pesticides. With a rotating bed reactor, you are equipped to respond to contaminants showing up on your test results.
Jochen Wachtmeister and Dörte Rother Curr. Opin. Biotechnol., 2016, 42, pp. 169-177.
Biocatalysis is a useful method for the synthesis of small chiral molecules, offering new possibilities for the synthesis of active pharmaceutical ingredients and other compounds. The rotating bed reactor has been established as an efficient way to deploy enzymes in production as well as research and development.
Roger A. Sheldon and John M. Woodley Chem. Rev., 2018, 118(2), pp. 801-838.
Poster on a case study of applying the rotating bed reactor for the lipase-mediated stereoselective acetylation of a racemate amine as a model reaction for the manufacturing of pharmaceutical building blocks. The results showed that enzyme recycling and synthesis scale up was easy to achieve with preserved yield, enantioselectivity and catalytic activity. Keywords: Biotransformation, Easy handling, Immobilized enzymes, Quick recycling, Seamless scaleup
When using of solid-phase catalysts or adsorbents in reactors, the physical degradation of the materials is a common problem. The traditional stirred tank reactor inflicts mechanical damage to the particles, which causes attrition, fines that are difficult to separate, and loss of the functionality of the solid-phase.
The stable reaction environment in the EasyMax™ 102 Advanced synthesis workstation and the high flow rates through the SpinChem® RBR allowed for quick and convenient screening of different immobilized lipases to find the enzyme most suitable for further reaction optimization. Keywords: Biotransformation, Immobilized enzymes, Mettler-Toledo, Organic molecules, Rapid screening
Research and development quickly takes new directions, and the requirements on a laboratory may vary with every new project. Limiting yourself to equipment with a narrow scope of conditions and applications may become expensive, since new equipment must be acquired for anything out of scope. With budgets quickly consumed by other projects, the need for new equipment may mean significant delays and a reduced capability to take on emerging opportunities. Many heterogeneous processes (e.g. adsorption or catalysis) are made faster by increasing the solid-to-liquid ratio. Studying scale-up effects can also help to predict full-scale performance. For these reasons it’s wise to invest in equipment that can handle different operating conditions such as liquid volume, solids loading, pH and temperature. The RBR S3 Plus is the most modular rotating bed reactor for laboratory use. Made from two stacked rotating bed reactors, the S3 Plus quickly converts to a single RBR S3 for use with smaller liquid volumes. When used in the dedicated glass reactor system, this yields an operating range of 250 - 1500 mL of liquid and 0 - 140 mL of solids. This application note investigates the effect of solids loading on the reaction rate of two applications: the adsorption of a dye and a biocatalytic esterification reaction. These two reactions are mass-transport limited and relatively fast. In the first case, an RBR S3 and an RBR S3 Plus were filled with 50 mL and 100 mL respectively of the ion-exchange resin Purolite® NRW1160. Methylene blue was dissolved in water, and the solution was decolorized by spinning an RBR at 600 RPM (reaction conditions in the details below). The results were clear; each case followed 1st order kinetics with a rate constant for the RBR S3 Plus that was twice that of the RBR S3. Note that the solid-to-liquid ratio for the RBR S3 Plus was also twice that of the RBR S3. For the enzymatic esterification, the same rotating bed reactors (RBR S3 and RBR S3 Plus) were filled with 40 mL and 80 mL respectively of the biocatalyst Purolite® immo PS. The rotating bed reactors were used in separate reactions in mixtures of lauric acid, 1-propanol and water. Also in this case the reaction rate was proportional to the solid-to-liquid ratio, yielding twice the productivity with the RBR S3 Plus compared to the RBR S3. The conclusion is that with a rotating bed reactor you are making the most out of the solid-phase. Doubling the amount of catalyst or adsorbent will generally double the reaction rate constant, which makes scaling up straightforward. Contact us today to discuss how we can scale your process.
The synthesis of products, such as active pharmaceutical ingredients, often involve multiple steps using heterogeneous catalysts or adsorbents. The need often arises for simultaneous use of multiple solid phases.
Two dyes were selectively extracted onto different adsorbents within the same run using a SpinChem® rotating bed reactor (RBR) and an EasyMax™ 102 Advanced synthesis workstation. This experiment illustrates performing cascade reaction for one-pot multi-step synthesis. Keywords: Cleantech, Decolouration, Extraction, Ion exchange, One-pot multistep, Organic molecules, Polymeric resin, Technology
Correlation data between extracted anthocyanidins/ anthocyanins vs time, temperature, and ethanol concentration was collected and analyzed. RBR extraction was deemed advantageous, in the authors’ own words: “The RBR was better than traditional extraction and 16 min sufficed.” Bilberry press cake is the major by-product from the production of bilberry juice. To valorize the press cake, the authors describe their work to extract antioxidant antocyanidins/ antocyanins from the cake. Different solvent compositions were compared as well as traditional extraction vs extraction by use of RBR. The methods used were as follows: “To summarize, the compared extraction methods were as follows: 1. Traditional extraction using different concentrations of ethanol dissolved in water, different masses of material, and different temperatures. 2. RBR extraction using different concentrations of ethanol dissolved in water, different masses, and temperatures. 3. RBR extraction using two-phase system, method 3 only mass and temperature were changed. 4. RBR extraction using two-phase system method 4, only mass and temperature were changed.”
Blue dye was removed from a highly viscous liquid using a SpinChem® RBR S2 in an EasyMax™ 102 Advanced Synthesis Workstation. Monitoring of the reaction was easily recorded as no freely suspended ion exchange resin beads or resin debris interfered with the readings. This demonstrates that the RBR technology is extremely well suited for in-line monitoring. The viscosity of the solution was determined to ca 230 cP at 25°C, showing that it is possible to absorb dye even from a highly viscous solution. Keywords: Decolouration, Extraction, Ion exchange, Mettler-Toledo, Viscous solutions
Biocatalysis offers many benefits in the production of chemicals and active pharmaceutical ingredients. One major challenge has been the deployment of immobilized enzymes in an efficient way on large scale. The rotating bed reactor offers a convenient way to scale a biocatalytic process.
Sometimes you don’t want to pack the entire rotating bed reactor full with your solid-phase material. Fully loading might simply be wasteful, or you may want to experiment with your reaction conditions. But how does the amount of solids in the rotating bed reactor influence the reaction performance? Can you use only 10% of the full capacity?
Scavenging of soluble undesirable compounds and substances onto solid phase is used in a wide range of applications. In this example, a rotating bed reactor (RBR) is used to capture low concentrations of a phenol onto readily available Strong Anion Exchange (SAX) resin as a scavenger.
